Think about a small little one attempting to push a full-size grownup in a buying cart. It’s doable to get the cart shifting (barely), however it will be very exhausting to begin or cease. Steering might be disastrous—the kid might not make it round a nook in time.
A excessive inertia ratio between a load and a servo motor is sort of a small little one pushing a heavy cart; it will be tough to begin and cease, and response could be sluggish. (Picture courtesy of GAM.)
“In servo tuning, that is while you don’t have sufficient of a ratio in your gearbox, and your inertia ratio between your motor and cargo is just too excessive,” says Matt Ruggles, senior design engineer at GAM, a U.S.-based producer of servo gear reducers and different movement management parts.
Now take into account a big grownup who doesn’t know their very own energy, pushing a small little one in a buying cart. They might utterly overpower the cart, making turns too quick and throwing the kid round contained in the basket, doubtlessly hurting them.
“This might be the alternative finish the place the motor inertia is far increased than the load inertia,” says Ruggles. “You’ve most likely put extra money into your motor and drive than you should, and you’ll injury your tools by altering the movement too shortly.”
Inertia matching is a key think about sizing a servo system. It refers back to the ratio between load inertia and motor inertia, which impacts a motor’s skill to manage its load throughout acceleration and deceleration.
Inertia Ratio = JLOAD / JMOTOR
the place JLOAD is the load inertia mirrored to the motor and JMOTOR is the motor inertia. Load inertia consists of all rotating parts within the system, such because the drive, exterior mass and coupling.
Designers should decide what inertia ratio is suitable based mostly on the dynamics of the movement and the extent of accuracy required. A 1:1 inertia ratio is taken into account splendid as a result of it gives the most effective management and is best to tune. Nonetheless, striving for an ideal match is just not at all times sensible, and pushing too shut can result in an outsized motor, increased system value and elevated power consumption.
“Usually, nowadays you may stand up to a ten:1 ratio the place the load is 10 occasions larger than the motor,” says Ruggles. “When you get past that, the servo tuning begins to grow to be rather more tough. It was you’d attempt to get inside 5:1, however servo controls have gotten a lot better.”
When inertia matching is poor as a consequence of a excessive inertia ratio or improper tuning, the system might reply sluggishly and produce vibration or noise. The load might fail to settle at its meant place, persevering with to float as an alternative of reaching its endpoint. It might overshoot its goal, then oscillate forwards and backwards because the motor tries to compensate. For the reason that motor is working tougher to manage the load, it will additionally draw extra present, impacting effectivity and value.
One approach to get a smaller motor to manage a bigger load is to convey a excessive inertia ratio nearer to 1:1 by including a gearbox.
JREFLECTED = (JLOAD / i2) + JGEARBOX
the place i is the gearbox ratio, and JGEARBOX is the inertia of the gearbox.
“The ratio of the gearbox impacts the inertia ratio by a sq. issue—so a ten:1 gearbox has a 100:1 affect on the inertia ratio,” explains Ruggles. “You may get a giant benefit in a short time by including a gearbox to your system.”
Whereas the gearbox itself provides inertia to the system, its contribution is small in comparison with the discount achieved by way of the gear ratio.
Correct servo tuning can even counteract the results of a excessive inertia ratio by giving the servo motor a greater sense of how one can management the load. Going again to the buying cart analogy, it’s just like the little one pushing the cart studying to anticipate the way it will react, slowing down forward of a flip or making ready upfront to cease on the finish of the aisle.

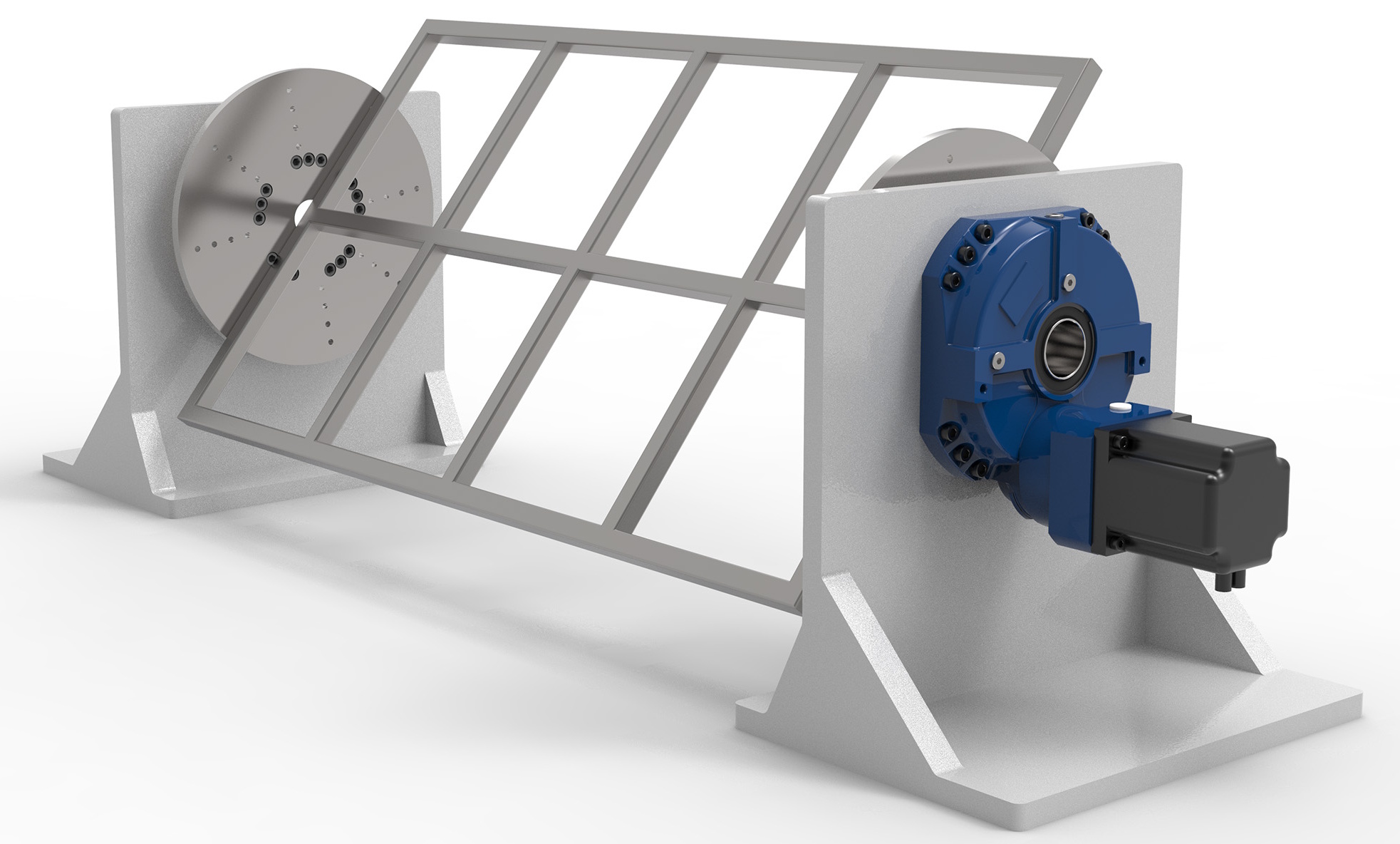

Utilizing a excessive ratio, precision gearbox, comparable to GAM’s GPL robotic planetary, brings the inertia ratio nearer to 1:1, permitting a smaller motor to exactly management the massive, heavy load of a trunnion, for instance, generally used as robotic weld positioners in automotive functions. (Picture: GAM.)
One other approach to scale back the inertia ratio is to make use of a bigger motor with increased inertia. Nonetheless, bigger motors are usually costlier and run at decrease speeds.
“The trick with including a gearbox is that it’s going to decelerate the output pace based mostly on what the motor is spinning at,” says Ruggles. “Should you attempt to use a big inertia motor that may’t run very quick mixed with a gearbox, now your output goes to be very gradual.”
Purposes that depend on decrease inertia ratios embody programs with excessive acceleration and deceleration or exact positioning calls for; for instance, robotics within the packaging business want bottles to line up completely with a nozzle after which swiftly transfer out of place.
GAM presents a variety of gearbox choices, from high-performance options to cheaper designs.
“Utility necessities can drive what sort of gearboxes and motors you employ, all the way in which down the system,” says Ruggles. “Now we have a full engineering crew for the extra enjoyable designs the place you actually must dive in and do some downside fixing to be able to obtain what the client is in search of.”
